Step 1: Create profiles In Unify

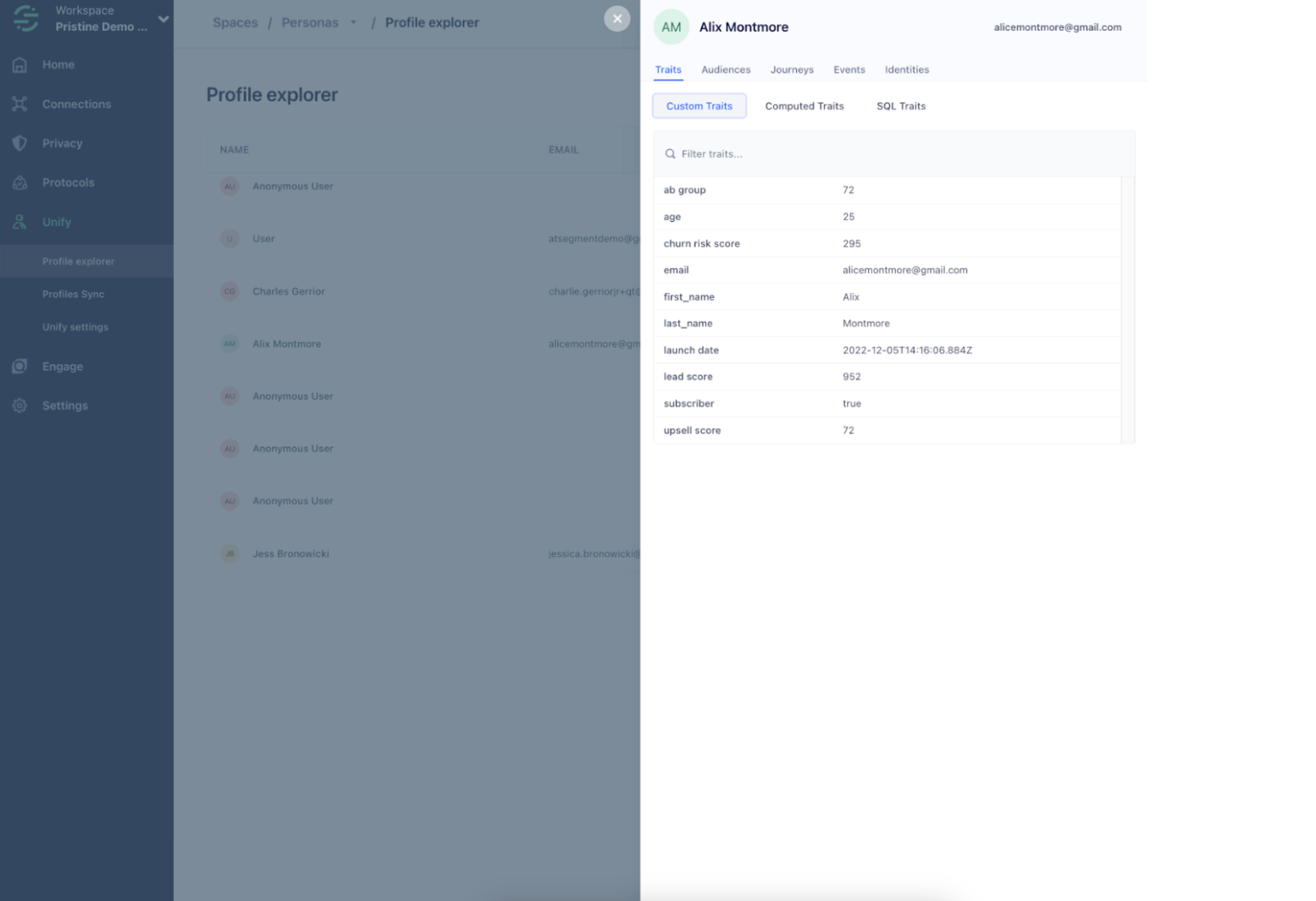

Segment collects customer interaction data from various sources like your websites, mobile apps, backend servers, and cloud applications. Segment will utilize first-party identifiers set by you, gathered from various sources to create customer profiles. In addition to known users, Segment will create anonymous profiles containing all interactions and traits for any unknown users. You have the freedom to select the first-party identifiers that suit your business needs.

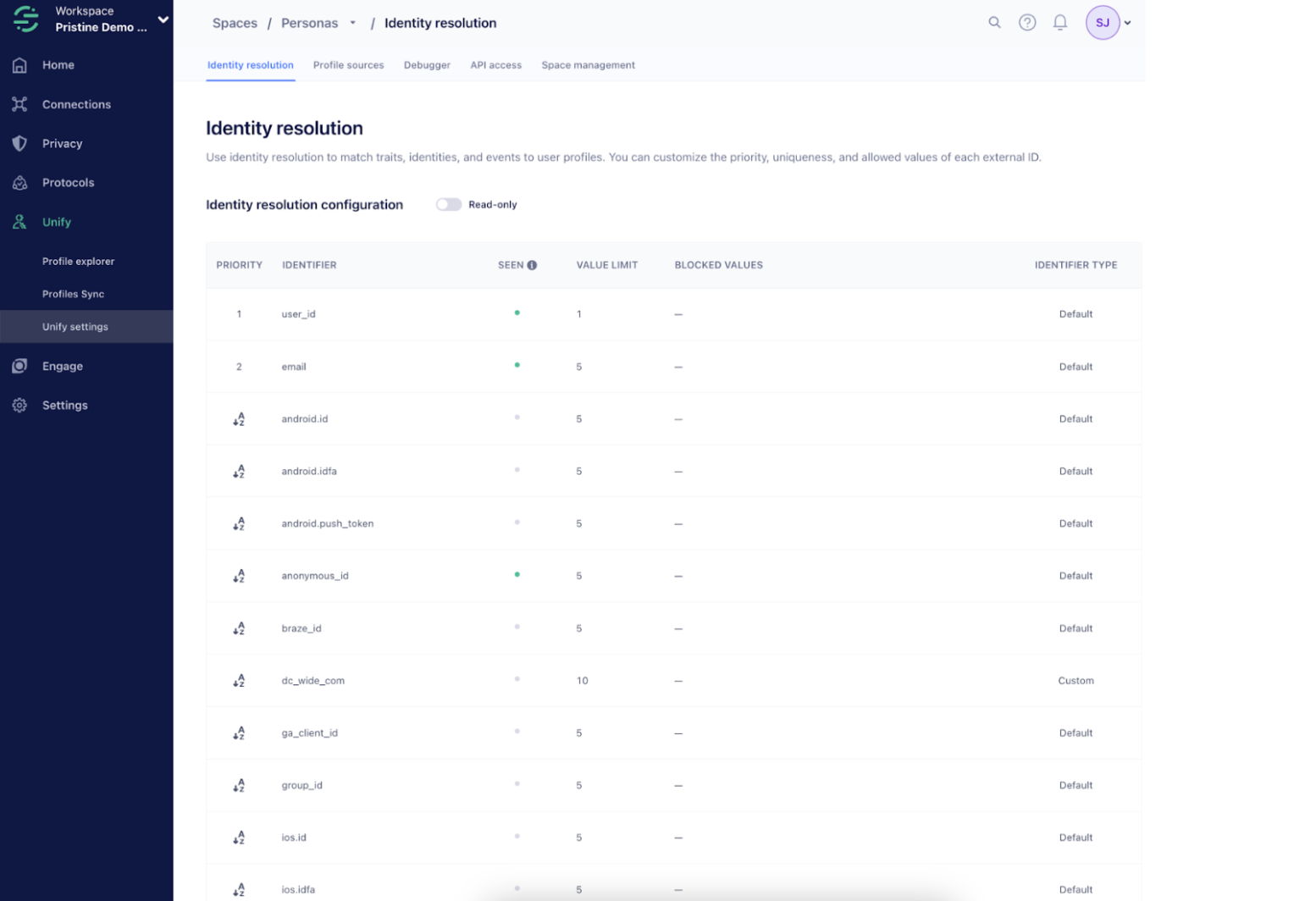

To initiate your identity resolution and begin creating these profiles, simply navigate to the "Unify Settings" located on the left-hand sidebar within your Segment account and follow the simple steps within our documentation.
Step 2: Setup Profile Sync

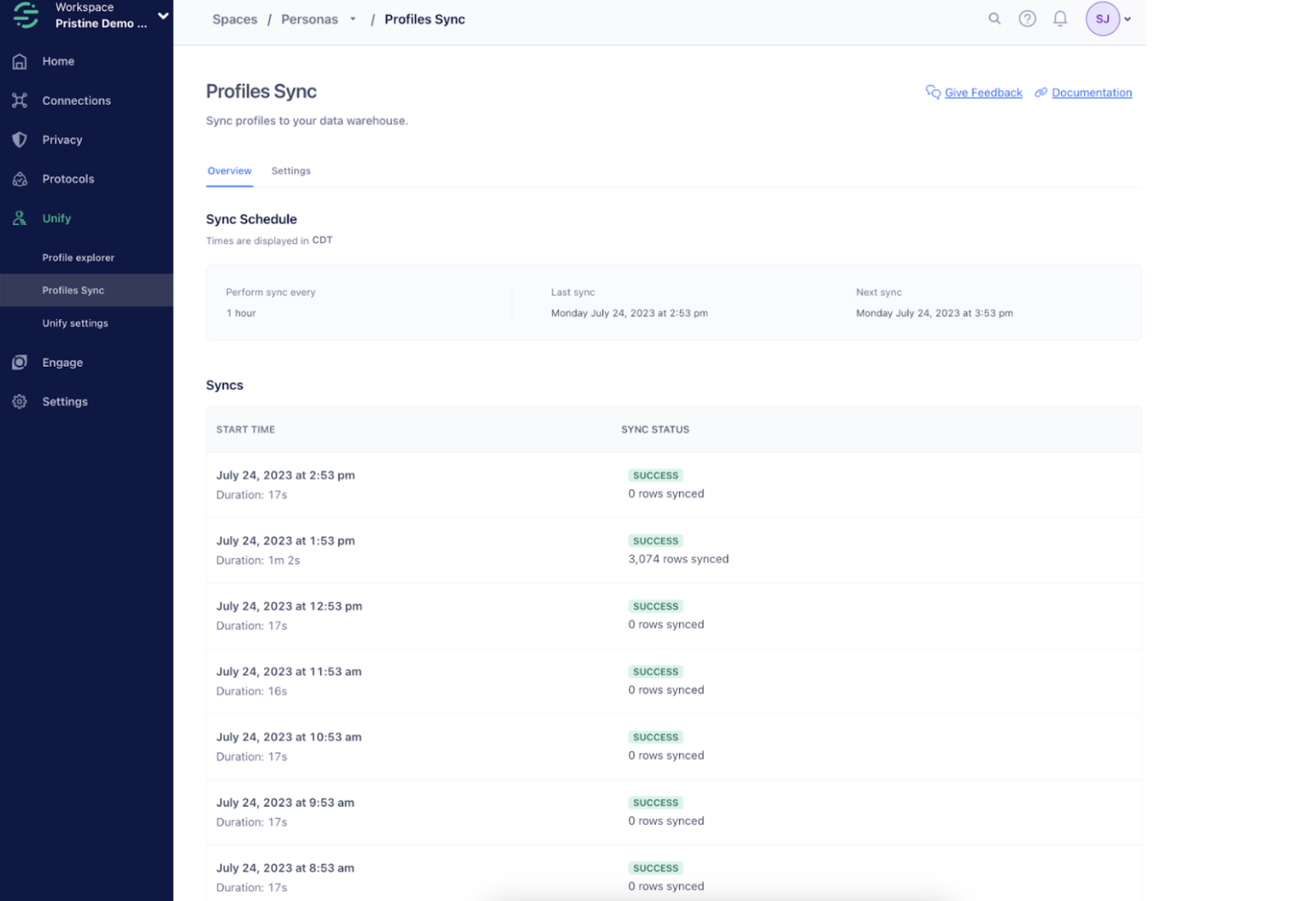

Now that you have your Profiles, it’s time to set up Profile Sync to land the identity resolved profiles in Redshift. Follow the simple steps within our documentation to set this up. Note that this requires a configured data warehouse. In this example we will be using Amazon Redshift as the data warehouse. If you do not have a Redshift cluster set up, you can provision one quickly using the Redshift Quick Start Cloud Formation template linked here. If you are setting up Redshift for the first time, note that Segment currently requires you to enable a public IP address for the Redshift cluster; this will require you to whitelist Segment IPs listed in the documentation above.

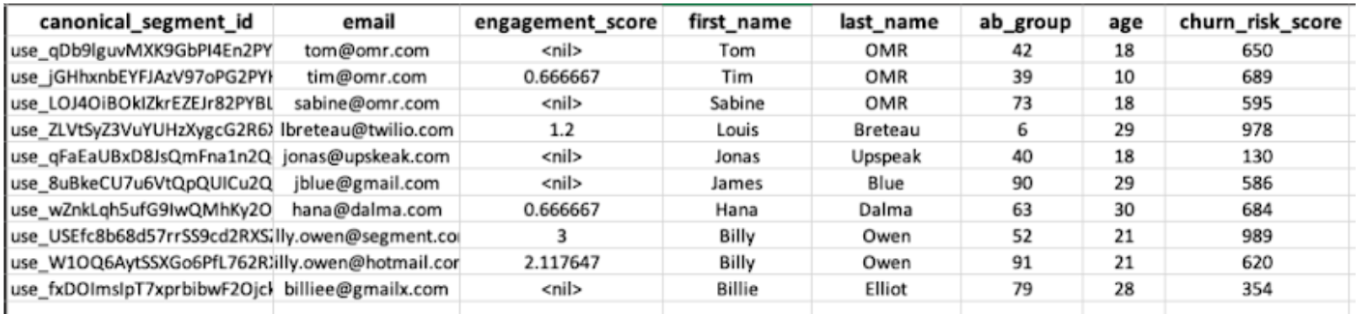

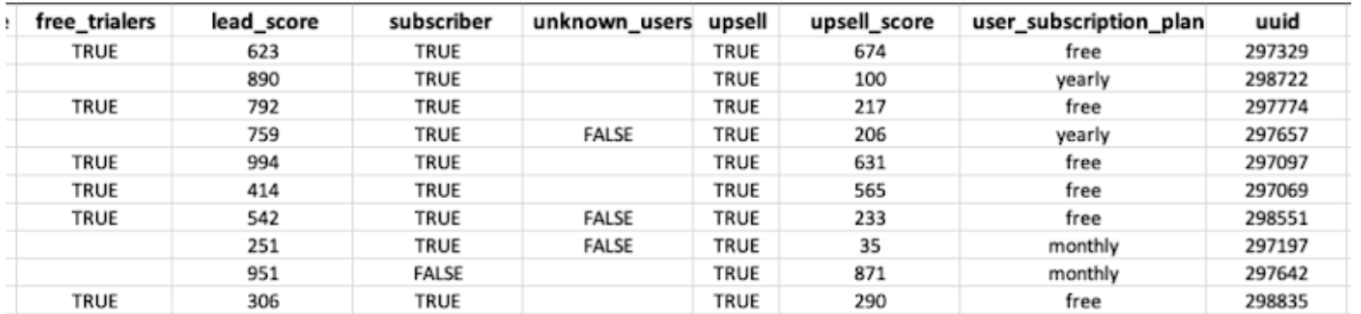

After configuring the profile sync, you will need to materialize views using DBT. You can use the Cloud DBT example linked above, or follow the instructions below to run DBT from the console using the DBT-Redshift package. Later, we will show how to use these tables to export profile data into a Clean Room. Below is an example of what golden profile records can look like in Redshift with all customer traits, audience membership, and advance calculation available as data points for each customer.
Step 3: Deploy AWS Clean Room ingestion stack

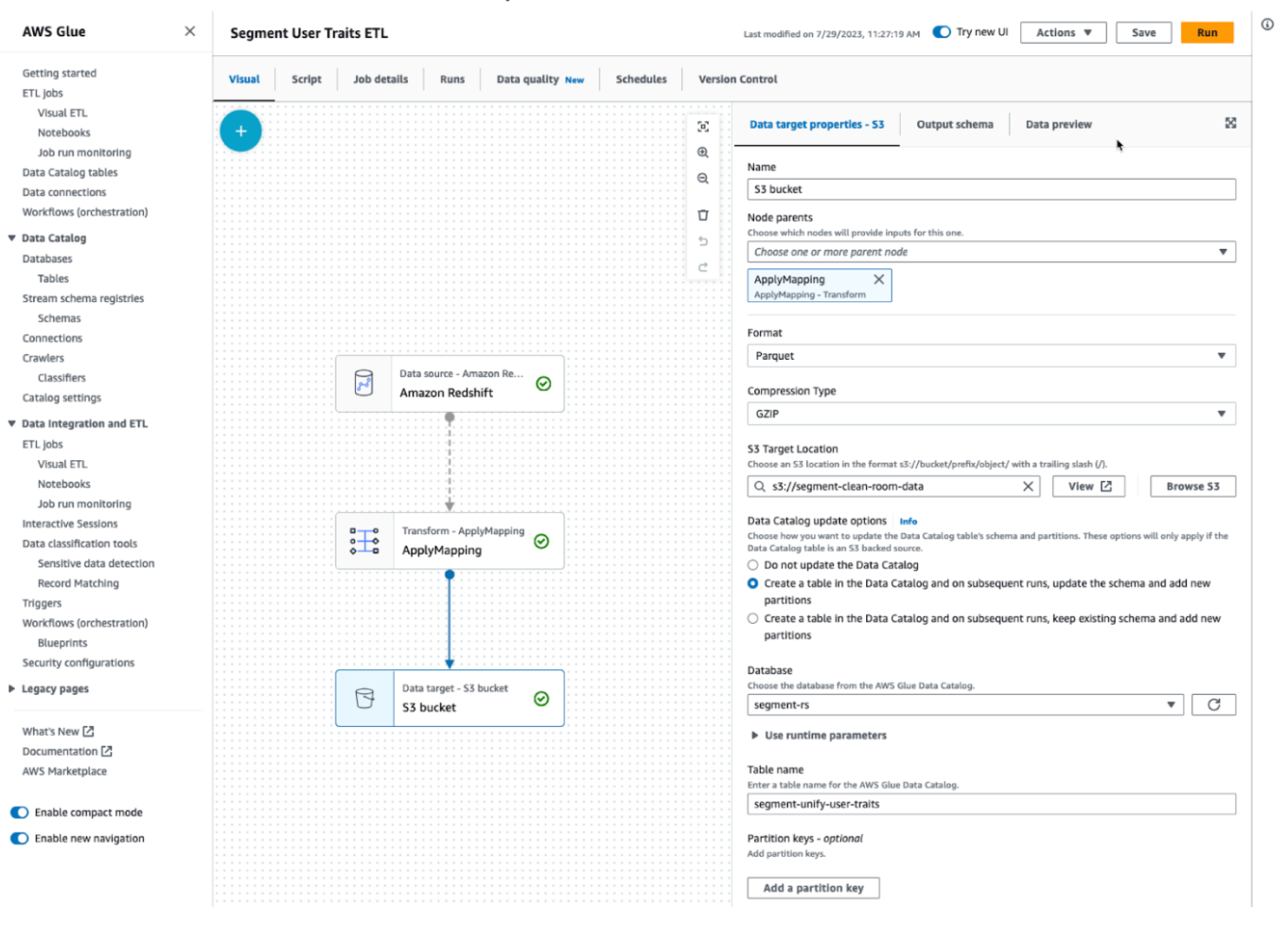

Amazon Clean Rooms requires a dataset in the Glue Data Catalog, hosted on S3. For this example, we are going to configure a Glue Crawler in an ETL Job to move data from the materialized views in Redshift to S3, then we will configure a Clean Room using this data set.

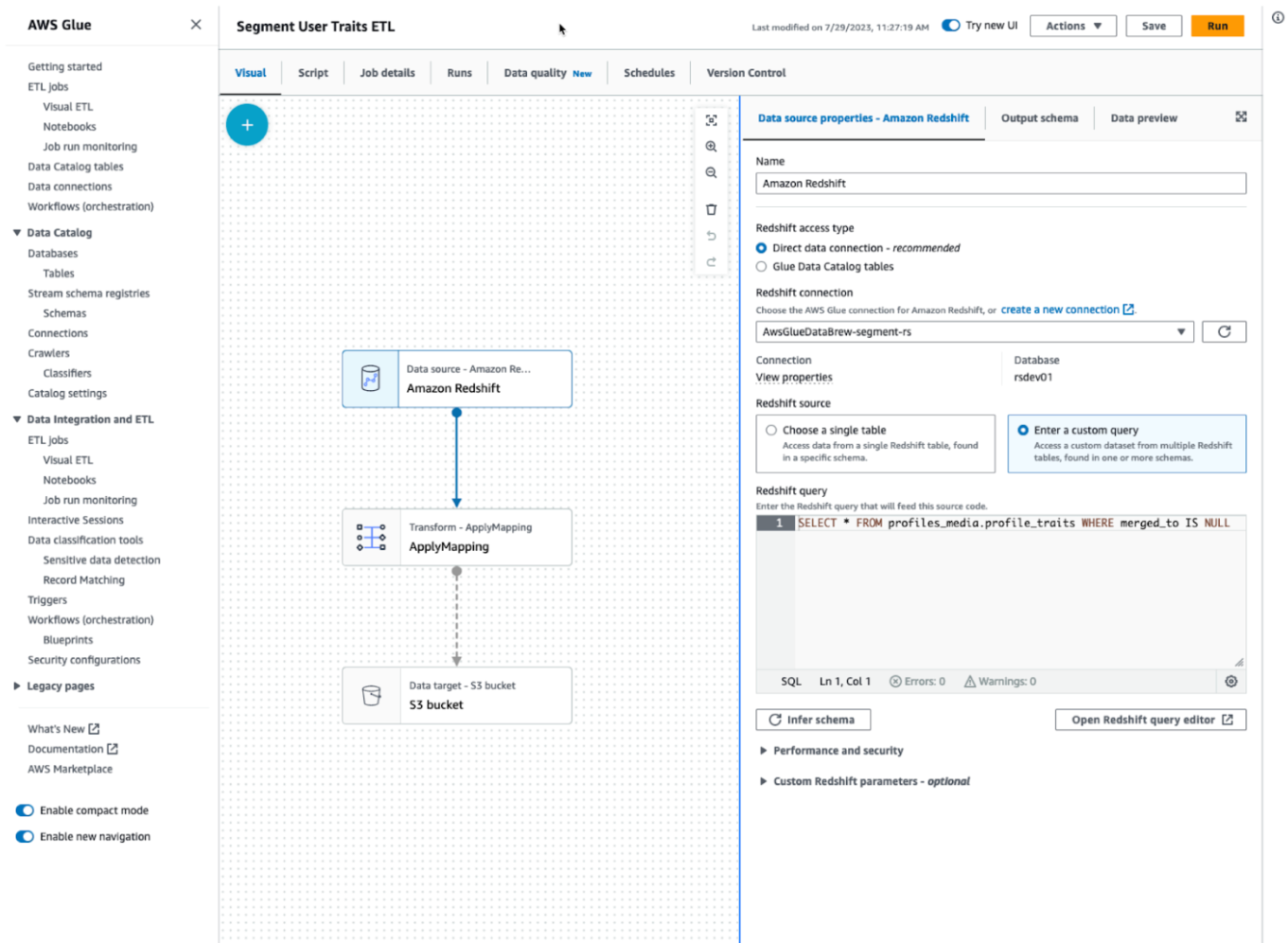

The ETL Job can run a query against the Redshift tables from Unify and return information about your users that you can expose in a Clean Room. Example queries are shown in the Segment docs. We are going to use the following query here:
SELECT * FROM profiles_media.profile_traits WHERE merged_to IS NULL
This will return all of the user traits available and the associated user ids that can be used to link user behaviors or values like LTV to a particular user.
Once you have finished configuring your ETL job, and it has run successfully, check that there is a table in the data catalog you specified. This job can be set to run on a schedule to match the Segment Unify Profile export schedule.
Step 4: AWS Clean Room set up
You can now set up a Clean Room.
Open the AWS Clean Rooms console, and click the ‘Configured tables’ link in the navigation pane, then click the ‘Configure new table’ button.
Select the Glue database you created for your ETL Job.
Select the output table from the ETL Job; you can turn on the ‘View schema from AWS Glue’ option to view the columns that are available in the table you created.
In this case we are going to select ‘All Columns’ to be available in the table that we publish.
Name the table, in this case we are using `segment-unify-user-traits`.
Click the `Configure new table` button.

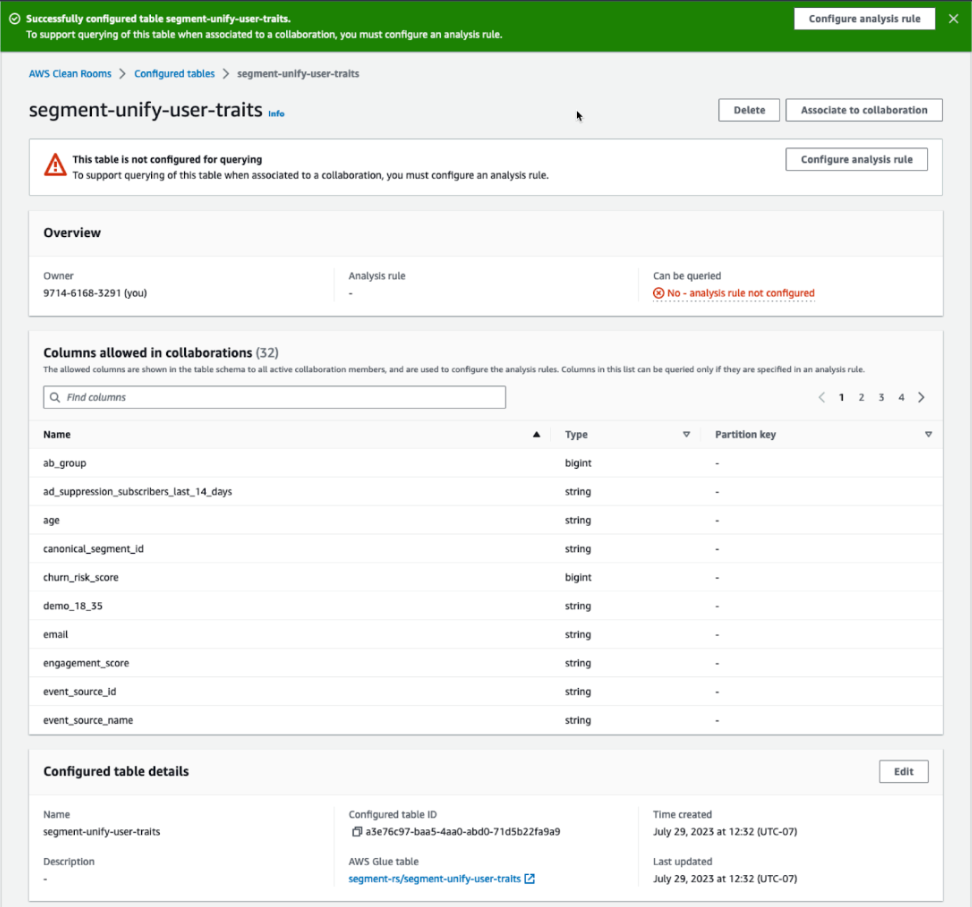

Before you can use the table for querying in a Clean Room, you will need to configure an analysis rule.
Click the ‘Configure analysis rule’ button to start the process.

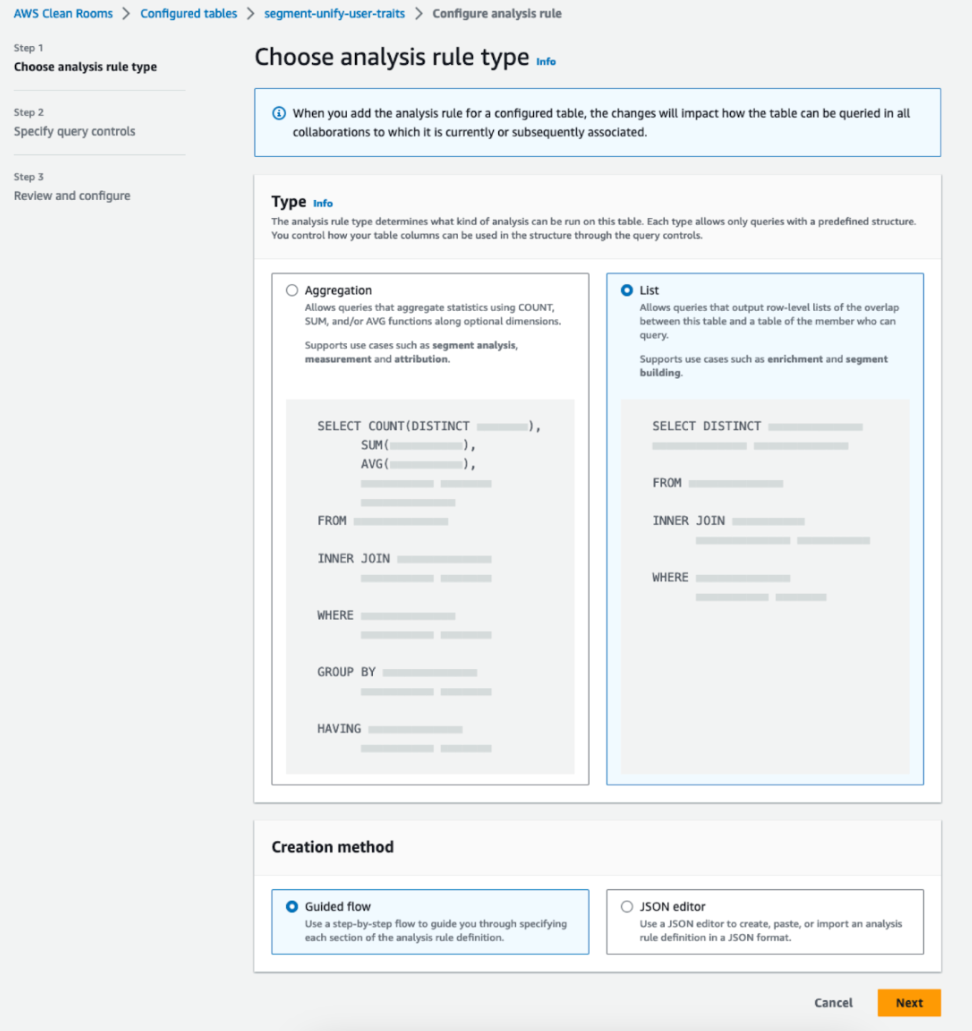

Analysis rules are described in more detail here. For this example, we are going to allow List queries against this table. Click the Next button.

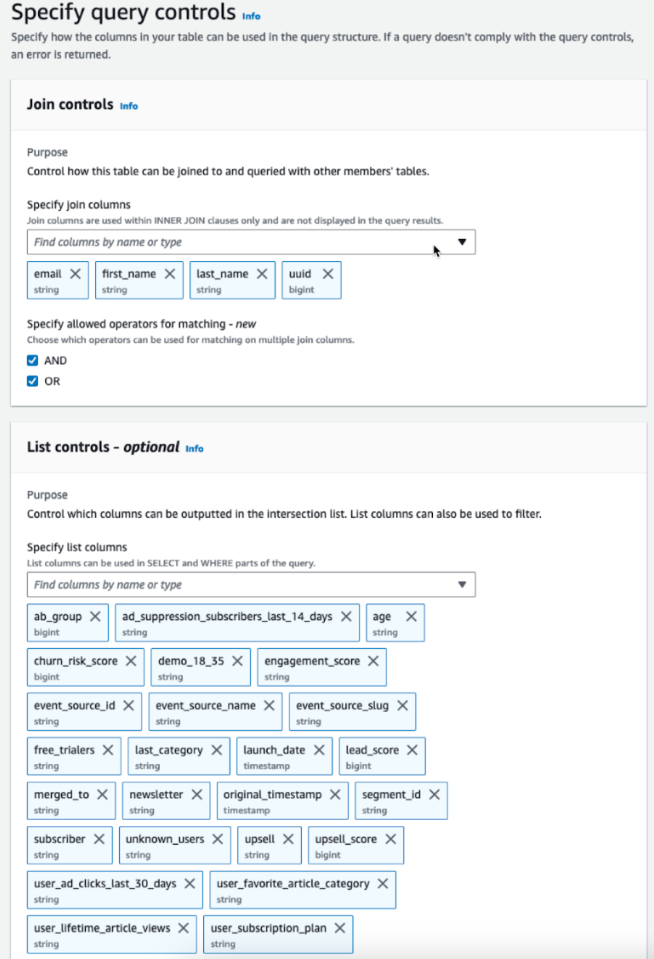

You will need to select the columns that users of the table are allowed to use in joins. This allows you to control which identifiers can be used as a key to external tables. Clicking Next will give you the opportunity to review the rule that was just created. Click Configure analysis rule to confirm the rule creation.
Step 5: Create a Collaboration to allow external accounts to query your table

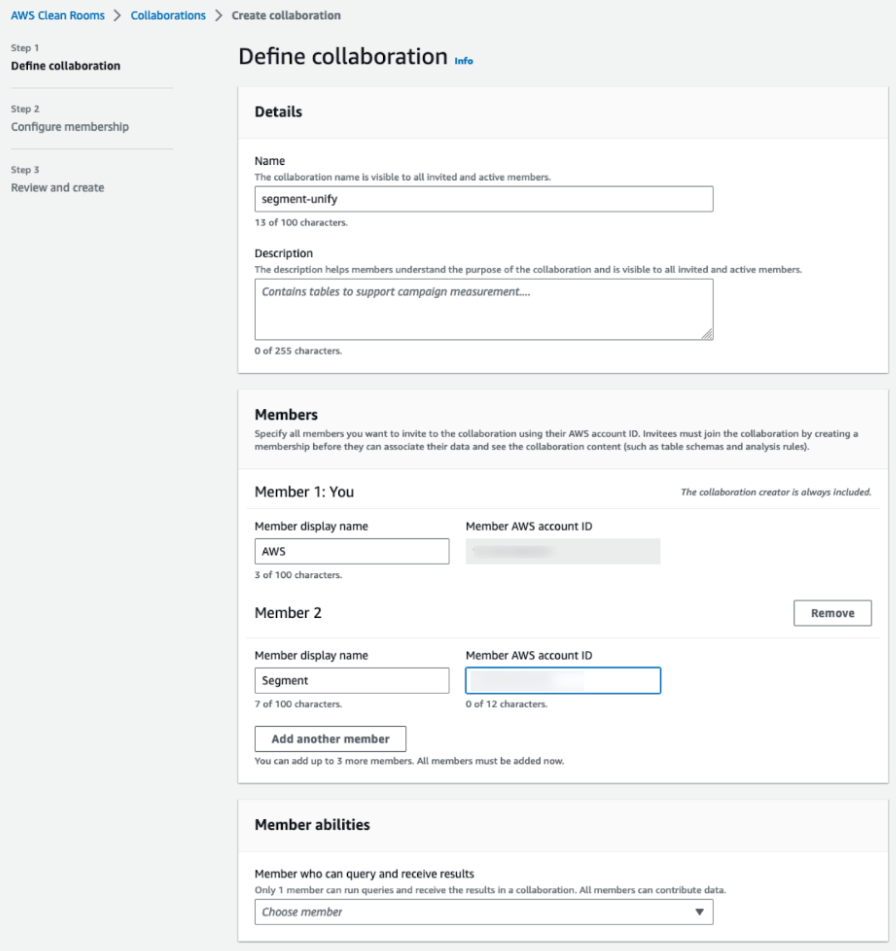

A Collaboration will allow owners of other AWS accounts to query the tables that you just created. This step will enable the Collaboration. You will be able to specify parameters that allow you to to control what aspects of the data you provide in your tables are available to external accounts.

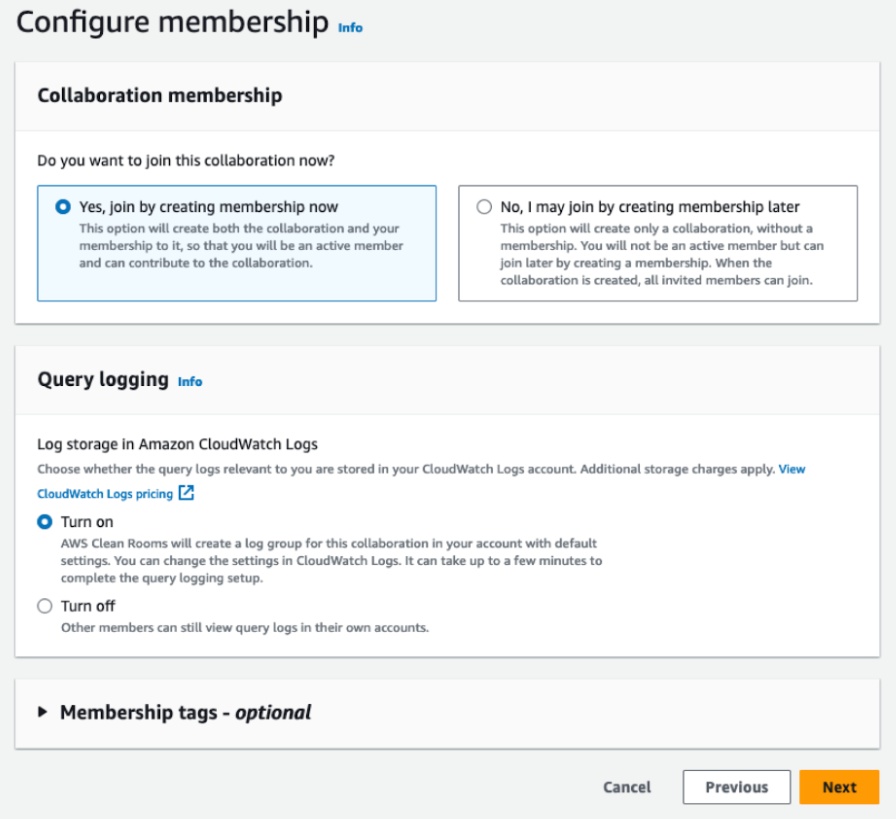

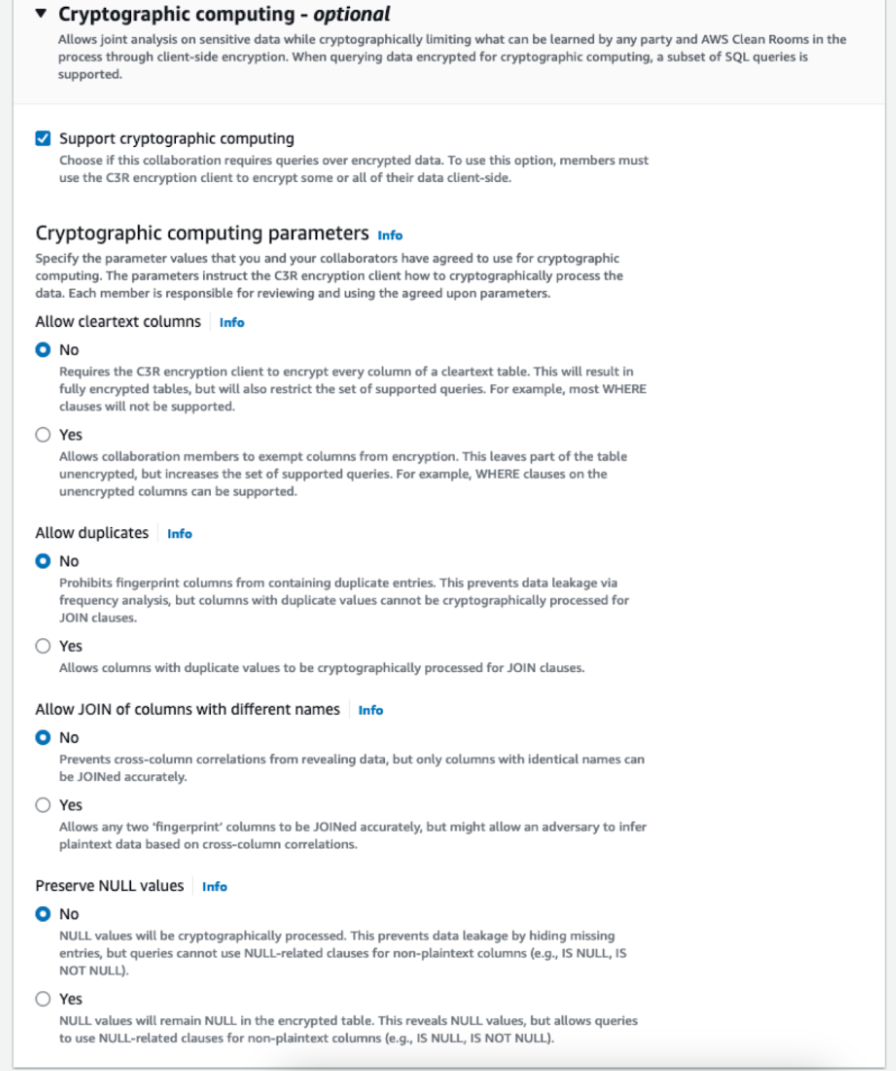

If you want the accounts you specified above to immediately be invited to the collaboration, select the settings below on the next screen:

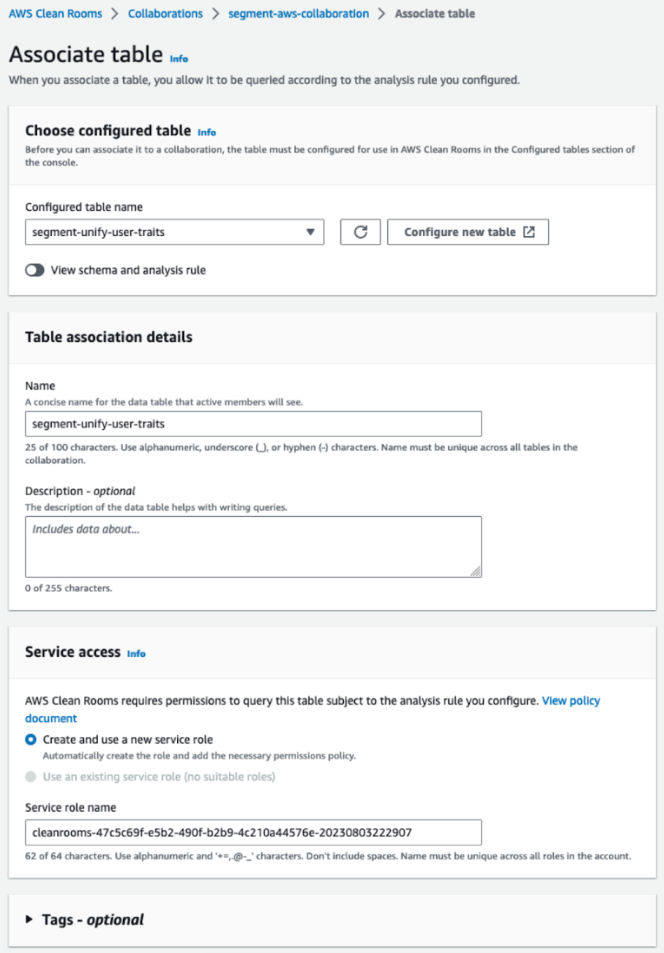

After creating the collaboration, you will need to associate the table you created earlier with the collaboration. This will allow members of the collaboration to start querying your table.
Step 6: Overlap analysis, attribution, and measurement in AWS Clean Room
Now that your clean room is set up, you can begin to use it for overlap analysis, attribution, and measurement. Overlap analysis allows you to understand the intersection of different user groups, while attribution helps you identify which marketing activities are driving conversions. Measurement, on the other hand, enables you to assess the effectiveness of your campaigns.
Here is additional detail on these capabilities:
Overlap Analysis: Use this feature to understand the shared audiences between different marketing campaigns, products, business units, and brands. This can help you to optimize your marketing strategy, discover intersections between different customer groups, and avoid message fatigue among your audience.
Measurement: You can measure a variety of metrics, including but not limited to, reach, impressions, click-through rates, conversion rates, and revenue generated.
Attribution: By tying conversions and other important events back to the marketing activities that led to them, you can understand which activities are most effective. This will enable you to allocate your marketing budget more efficiently.
Remember to always respect user privacy and comply with all relevant data protection regulations when conducting these analyses.
For more information on best practices for security in AWS Clean Rooms, read the best practices guide in the docs.
Wrapping up
By following this recipe, you have now created a clean room in AWS using AWS Clean Rooms and Segment collected 1P data. This clean room will provide a privacy-safe environment for your data analysis, and the insights generated can help to increase your revenue and ROAS.
Recipe Summary
How to build a Golden Profile in Segment Unify
How to send the Golden Profile to Redshift
How to leverage the Golden Profile to build a clean room with AWS Clean Rooms
How to facilitate audience overlap analysis, attribution and measurement use cases
